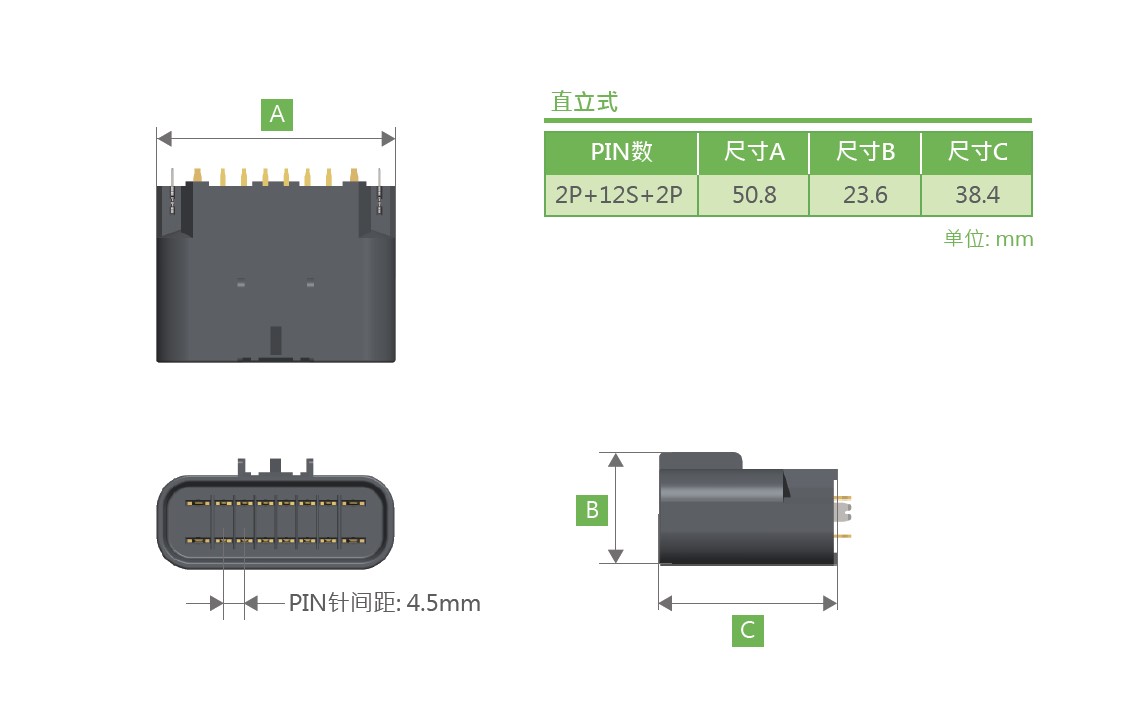

GT150 / 280 Sealed
GT150 / 280 Sealed
Information
Add to Inquiry- OrientationStraight
- Circuits2P+12S+2P
- Termination TypeDIP
- Pitch(power)5.4mm / (signal)4.5mm
| Features | |
|---|---|
| Pin Dimension | (power)0.64mm x 2.8mm / (signal)0.64mm x 1.5mm |
| Pitch | (power)5.4mm / (signal)4.5mm |
| Termination Type | DIP |
| Contact Current Rating | (power)25A / (signal)15A |
| Dielectric withstanding Voltage | 1000V |
| Operating Temperature Range | -40°C~125°C |
| Housing Material | UL94V-0 |
| Sealing Class | IP67 |
