BOX2.0
BOX2.0
Information
Add to Inquiry- OrientationRight Angle
- Circuits8P ~ 40P
- Termination TypeDIP /Wire Bonding
- Pitch2mm

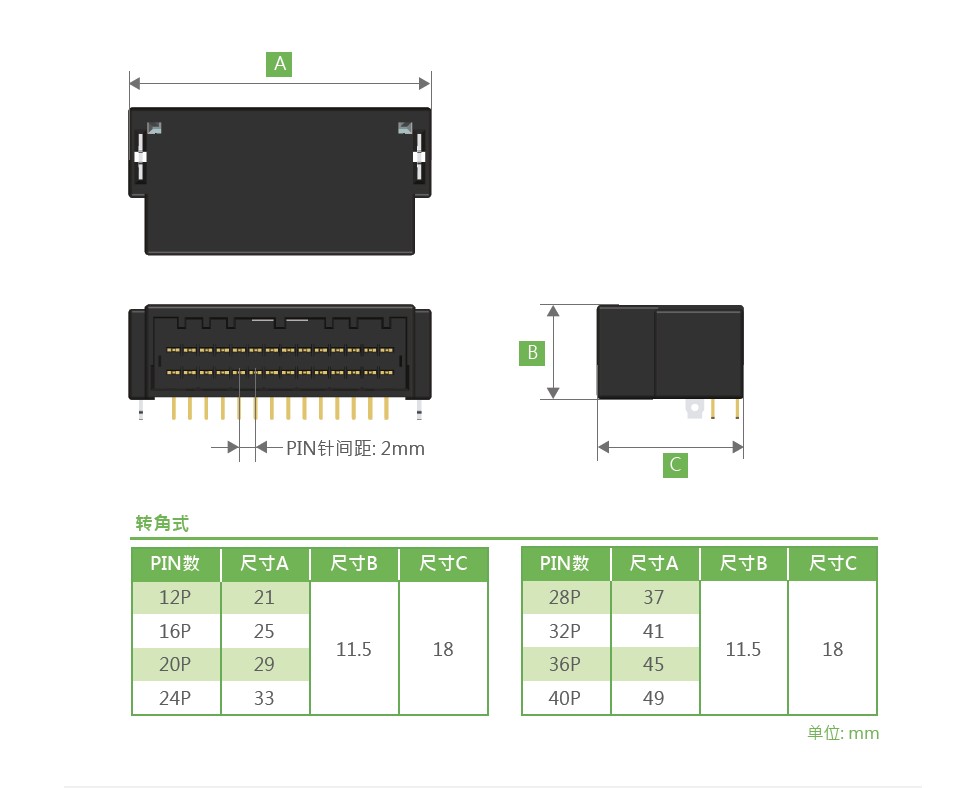

| Features | |
|---|---|
| Pin Dimension | 0.4mm x 0.5mm |
| Pitch | 2mm |
| Termination Type | Straddle / Wire Bonding |
| Contact Current Rating | 2.5A |
| Dielectric withstanding Voltage | 1000V |
| Operating Temperature Range | -40°C~125°C |
| Wire Size | 22AWG ~ 24AWG |
| Housing Material | UL94V-0 |
| Vibration Class | V2 (Meets USCAR2-8 5.1.4.3) |
