MCON 1.2
MCON 1.2
Information
Add to Inquiry- OrientationStraight
- Circuits3P~6P
- Termination TypeDIP
- Pitch4mm
| Features | |
|---|---|

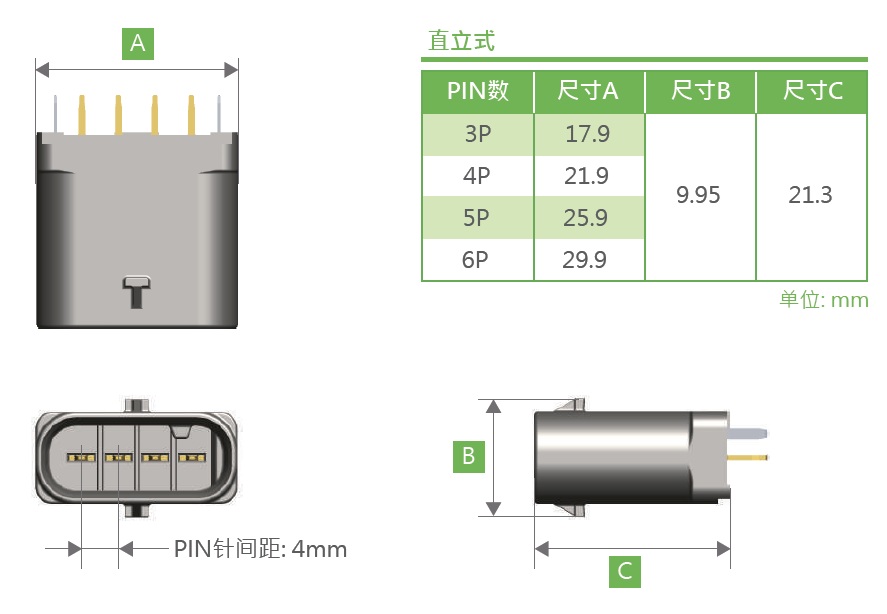

| Pin Dimension | 0.6mm x 1.2mm |
| Pitch | 4mm |
| Termination Type | DIP |
| Contact Current Rating | 4.5A |
| Dielectric withstanding Voltage | 1000V |
| Operating Temperature Range | -40°C~125°C |
| Housing Material | UL94V-0 |
| Vibration Class | V2 (Meets USCAR2-8 5.1.4.3) |
